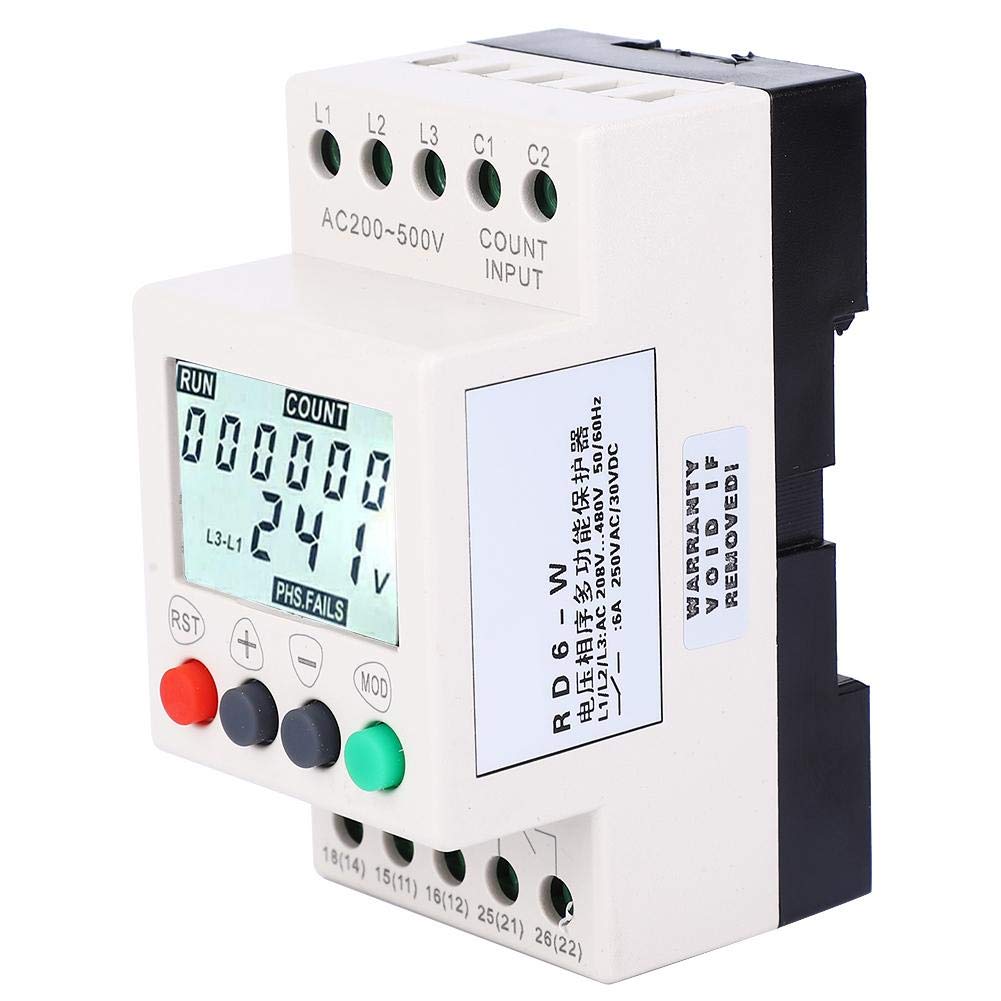

3 Phase Sequence Relay,RD6-W 208-480VAC Voltage Over Under Voltage Phase Failure Relay,LCD Rail Voltage Phase Loss Protector Monitoring Relay

Features: Standard modular construction, rail mounted.LCD display shows voltage value, fault status, parameter setting.Real-time monitoring of three-phase overvoltage, undervoltage, phase error, phase loss faulty.Powered by the measuring circuit, no additional auxiliary power required.Adjustable overvoltage value, undervoltage value and action time.Timekeeping and counting function. Specification: Rated Voltage: 208-480VAC universal, 50/60Hz Function: Overvoltage, Undervoltage, Phase Failure, Phase Error, Voltage Imbalance, Timekeeping, Count, Fault Record Setting Parameters: Overvoltage: 200-600V Undervoltage: 150-500V Over and Under Pressure Return Difference: 1-20V Over and Under Voltage Delay: 0.1-30s Unbalance Rate: 1-50% Unbalance Return Difference: 1-10% Unbalance Delay: 0.1-30s Reset Delay: 0.1-999s Form: A group of conversion, a group of normally closed Capacity: 6A AC250V (resistive) Mount Method: 35mm DIN rail Typical Application: Motor, Fan, Pump, Air Compressor, Hoist, Vehicle, Crane, Elevator, Machine Tools, Central Air Conditioning, Refrigeration Equipment, Equipment, Industrial Control System Package List: 1 x Phase Sequence Protector

• Standard modular construction, rail mounted.
• LCD display shows voltage value, fault status, parameter setting.
• Real-time monitoring of three-phase overvoltage, undervoltage, phase error, phase loss faulty.
• Powered by the measuring circuit, no additional auxiliary power required.
• Timekeeping and counting function.
